二硫化铌晶体 3R-NbS2(Niobium Disulfide)
晶体尺寸：4毫米
电学性能：金属
晶体结构：六边形
晶胞参数：a = b = 0.330 nm, c = 1.792 nm, α = β = 90, γ = 120°
晶体类型：合成
晶体纯度：＞99.995%

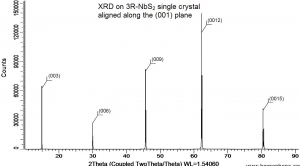

X-ray diffraction on a single crystal 3R-NbS2 aligned along the (001) plane. XRD diffraction was performed at room temperature using a D8 Venture Bruker. 5 XRD peaks correspond, from left to right, to (00l) with l = 3, 6, 9, 12, 15

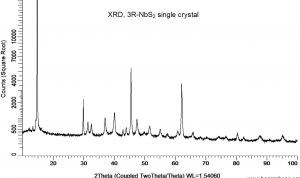

Powder X-ray diffraction (XRD) of a single crystal 3R-NbS2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

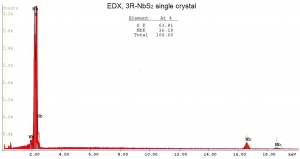

Stoichiometric analysis of a single crystal 3R-NbS2 by Energy-dispersive X-ray spectroscopy (EDX).
